Metro Airow Banner Bracket System

Product code: PROD-METROAIROW

The Metro Airow is a compact, adjustable system design for mounting banners to posts and walls and helps deal with expansion of PVC due to wind and heat and will keep your banner taut. Sold as a pair. Specifically designed for pole... Read more

The Metro Airow is a compact, adjustable system design for mounting banners to posts and walls and helps deal with expansion of PVC due to wind and heat and will keep your banner taut.

Sold as a pair.

Specifically designed for pole diameters 76mm and over whether straight, fluted or tapered (simply select the correct Tamtorque clips to correspond) and to accommodate a maximum banner size of 750mm x 2000mm.

Unique canted banner arm design: Top arm is canted up, bottom arm is canted down, and when banner is installed, the canted arms put the banner under tension to transfer wind force to the fibreglass. Produces a taut, tight and trim banner appearance with no ‘flopping’ or ‘sagging’

Tested to withstand up to 120mph wind force.

Brackets must be installed using 2 Tamtorque Stainless Steel bands per bracket (4 per set) which provide a tamper resistant fix.

Estimated installation time approx. 20 minutes per banner.

Please note, if you require EN40 compliance you will need to use the Euro Chieftain System.

What do I need for a complete system?

The system alone comprises of two UV treated canted fibreglass arms, two silver weather resistant aluminium alloy brackets, four diametric screws and hitch pins to hold the banner arm securely in place.

To complete the system, tamtorque clips need to be added in addition to suit the size post required (2 Tamtorque Stainless Steel bands per bracket, 4 per set) and Tamtorque fixing tools if you do not have these already.

You will also need nylon cable ties to anchor the banner to the bracket.

Read less

Select Products

Metro Airow Banner Bracket System - 2 Brackets, 2 Poles, 4 Screws & 2 Hitch Pins Product Code: METROAIROW

£104.10 £86.75

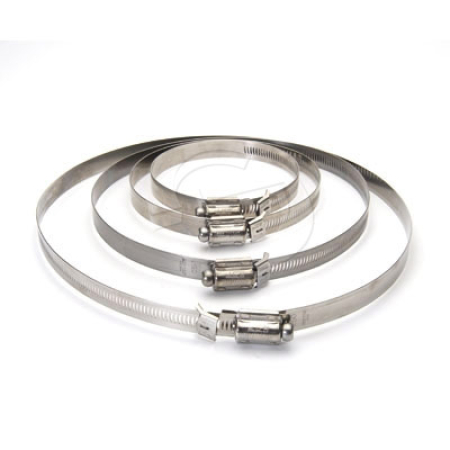

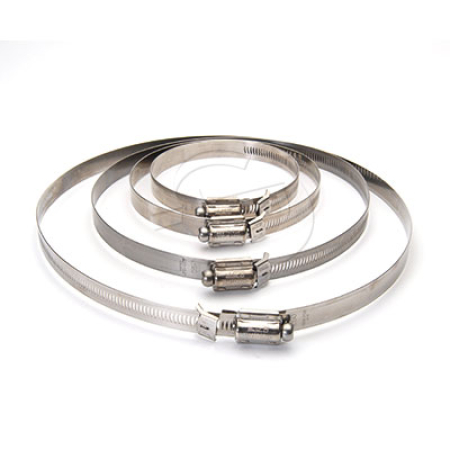

Tamtorque Clips - 55mm - 70mm Product Code: TT70

£3.54 £2.95

50 for £3.08 £2.57 each

Tamtorque Clips - 70mm - 100mm Product Code: TT100

£3.92 £3.27

50 for £3.36 £2.80 each

Tamtorque Clips - 100mm - 130mm Product Code: TT130

£4.50 £3.75

50 for £3.73 £3.11 each

Tamtorque Clips - 130mm - 160mm Product Code: TT160

£4.74 £3.95

50 for £4.06 £3.38 each

Tamtorque Clips - 130mm - 190mm Product Code: TT190

£5.16 £4.30

25 for £4.50 £3.75 each

Tamtorque Clips - 190mm - 250mm Product Code: TT250

£4.74 £3.95

25 for £4.54 £3.78 each

Tamtorque Clips - 250mm - 340mm Product Code: TT340

£6.22 £5.18

25 for £5.24 £4.37 each

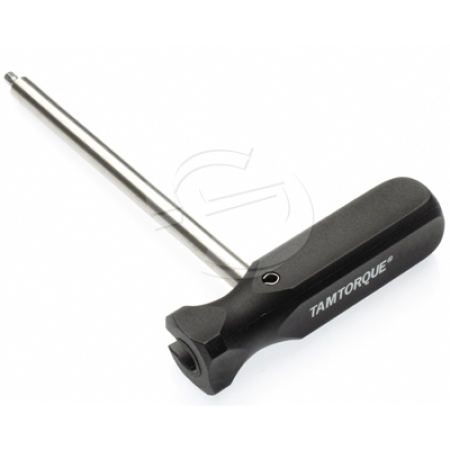

Tamtorque Manual Combi Driver Product Code: TMD

£17.40 £14.50

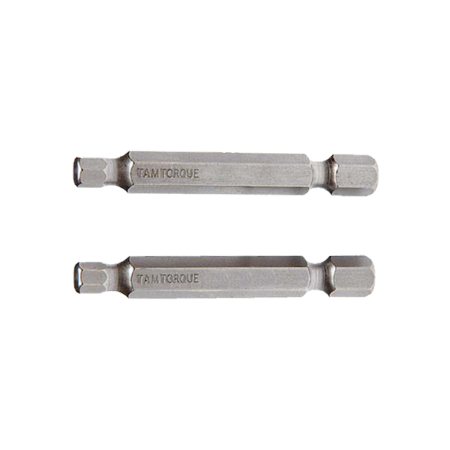

Tamtorque Power Tool Bit (Pack of 2) Product Code: TPT

£6.30 £5.25

Nylon Cable Ties - 200x4.8mm (55mm Diameter) Natural Product Code: CT203

£2.46 £2.05

Subtotal (0)

£0.00 ex. VAT

£0.00 inc. VAT

Description

Maximum recommended banner size 750mm x 2000mm.

Features

Attractive streamline design with integrated banding ports in the weather resistant aluminium brackets
Compact, adjustable system that will flex under wind load allowing air to spill off the banner, therefore reducing stress on the banner and column
UV treated fibreglass banner arms (CNC tapered)
Integral cast loop for anchoring banner with nylon cable ties
Suitable for installing onto lamp columns and flag poles from 76mm diameter and above using the correct corresponding clips
Compatible with round, square, straight, fluted, octagonal or tapered columns
Tested to withstand up to 120mph
Engineered for durability with no moving or mechanical parts to wear our
Can be used for one or two banners per column
Brackets installed onto columns using 2 Tamtorque stainless steel bands per bracket, estimated installation time to install one complete system and banner: 20 minutes
Can be wall mounted using pre-drilled holes within bracket
